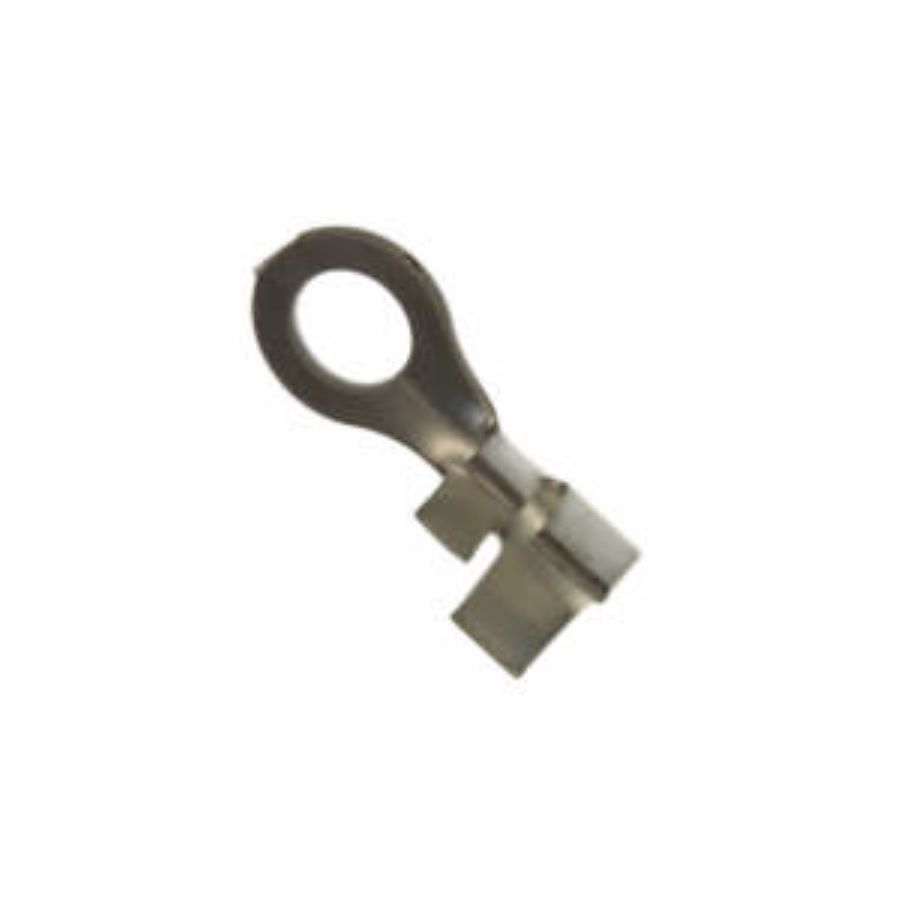

41332
Manufacturer:
TE Connectivity
Mfr.Part #:
41332
Datasheet:
Description:
Terminals Through Hole 14 AWG Female
| Parameter | Value |
|---|---|
| Length | 16.256 mm |
| Width | 7.49 mm |
| Termination | Crimp |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.51 mm |
| Thickness | 508 µm |
| Lead Free | Not Applicable |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Ring |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Wire/Cable Gauge | 14 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 14 AWG |
| Inside Diameter | 1.9 mm |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 4.32 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Material Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Stud Diameter | 4.34 mm |
| Heavy Duty | No |
| Number of Holes | 1 |
| Stud Size | M4 |
| Tongue Thickness | 510 µm |
| Government Qualified | No |
Stock: 2132
Distributors
pcbx
pcbxUnit Price$0.08294
Ext.Price$0.08294
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08294 | $0.08294 |
| 10 | $0.04147 | $0.41470 |
| 50 | $0.03795 | $1.89750 |
| 100 | $0.03473 | $3.47300 |
| 500 | $0.03142 | $15.71000 |
| 1000 | $0.02842 | $28.42000 |
| 3000 | $0.02747 | $82.41000 |
| 5000 | $0.02656 | $132.80000 |
| 10000 | $0.02440 | $244.00000 |
